> Film Capacitors

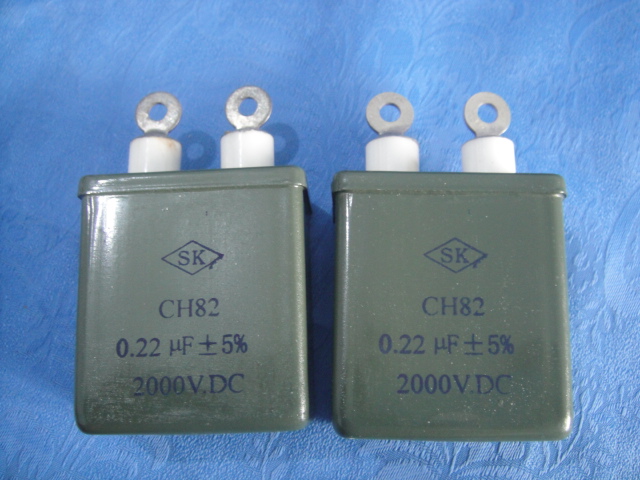

CH82 High Voltage Sealed Composite Dielectric Capacitor
- Product description: CH82 High Voltage Sealed Composite Dielectric Capacitor
Product introduction
Metal case with insulated ceramic terminals and hermetically sealed structure
Excellent moisture resistance
25 case sizes are available
High withstanding voltage and high insulation resistance
Stable capacitance and excellent heat radiation features
Used on DC and pulse circuit of various electronic equipment
|
Specifications |
|
|
Standards |
SJ660-73 |
|
Climatic Category |
55/085/10 |
|
Rated CapacitanceRange |
0.01-10μF |
|
Rated VoltageRange |
2KV-100KV |
|
Capacitance Tolerance |
±5%;±10% |
|
Dissipation Factor |
≤0.01 |
|
Insulation Resistance |
UR ≤0.1μF ≥10000MΩ UR > 0.1μF ≥2000S |
|
Withstanding Voltage |
UR≤30KV 1.5UR UR > 30KV 1.2UR |
