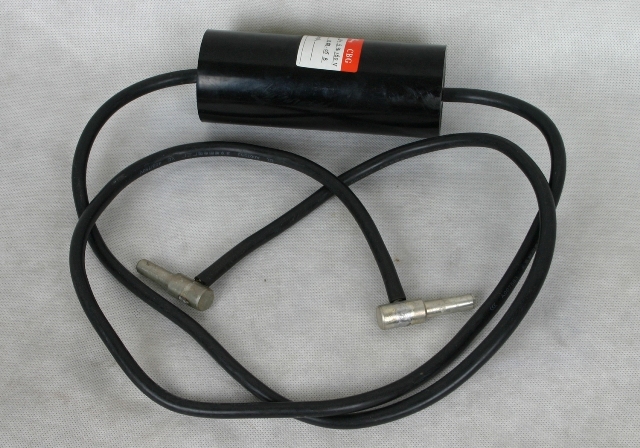

CBG Metallized Polypropylene Film Track Compensation AC Capacitor
- Product description: CBG Metallized Polypropylene Film Track Compensation AC Capacitor
Product introduction
Use polypropylene film as dielectric, evaporated metal layer on the surface of the film as electrodes Excellent self-healing property. Rubber insulated cable as axial leads.
Used on non-insulated track circuits for compensation
|
Specifications |
|
|
Standards |
Q/SK011-2002 |
|
Temperature Range |
-40℃-+85℃ |
|
Rated CapacitanceRange |
22μF -100μF |
|
Rated Voltage |
160VAC |
|
Capacitance Tolerance |
±5%; ±10% |
|
Dissipation Factor |
≤0.007 (1KHZ) |
|
Insulation Resistance |
≥500MΩ |
|
Withstanding Voltage |
2UR (10S) |
