> Film Capacitors

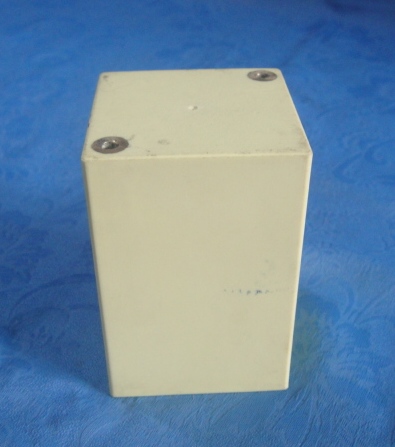

CBB80B High Voltage Metalized Polypropylene Film AC Capacitor
- Product description: CBB80B High Voltage Metalized Polypropylene Film AC Capacitor
Product introduction
l Square or rectangular plastic case; small in size and light in weight
l Reliable and self-healing
l Used for the overvoltage protection of rectifier tubes and thyristors in electric locomotives
|
Specifications |
|
|
Standards |
Q/SK003-2002 |
|
Temperature Range |
-40℃ to +50℃ |
|
RatedCapacitanceRange |
0.5μF; 1μF |
|
RatedVoltageRange |
800VAC;1100VAC;1400VAC;1800VAC |
|
Capacitance Tolerance |
±5%;±10% |
|
Dissipation Factor |
≤0.001(1KHZ) |
|
Insulation Resistance |
≥1000MΩ |
|
Withstanding Voltage |
3UR (DC) 1.5UR (AC) (2S) |
|
Height |
76mm for 1800VAC 1µF; others ≤55mm |
